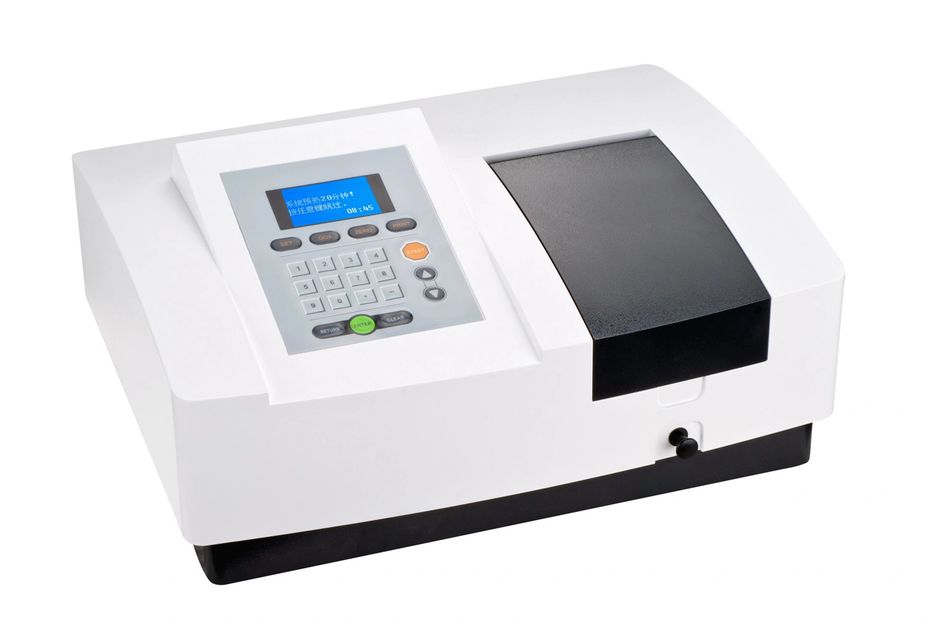

Split Beam UV/Vis Spectrophotometer UV756CRT UV759CRT

Features of Split Beam UV/Vis Spectrophotometer UV756CRT/UV759CRT

Split Beam UV/Vis Spectrophotometer

1. Automatically set and calibrate the wavelength.

2. USB ports for programming updates and other accessory connection.

3. Absorbance, %T and concentration modes.

4. The RAM has the capability of saving 200 groups of measured data which can be recalled any time.

5. Users can build their own standard curve and save it within the RAM. The curves can be reloaded at any time. Up to 100 curves can be stored.

6. Software based on windows can expand the applications to Standard Curve and Kinetics through the USB port.

7. Imported Fiber Converter, which guarantees the high sensibility.

8. Advanced Microcontroller. 32 bits ARM 11, the frequency can reach 533MHZ, which ensures the instrument’s stability.

9. Sealed monochromator and all the optical mirror surface is coated with Silicon Dioxide, which protect the optical components from the environment.

10. The instrument has the ability to test Absorbance, Transmittance and concentration at selected wavelength.

11. Optional 8 positions cell holder.


Included Accessories



  • 1 Main Instrument
  • 1 Power Cable
  • 4 x 10mm Glass Cuvettes
  • 1 Cell Rack
  • 1 Tungsten Lamp
  • 1 Deuterium Lamp
  • 1 Singal Cable
  • 1  Software CD

UV756CRT UV/Vis Spectrophotometer

Technical Parameters of UV756CRT Spectrophotometer



  1. Optical System: Czerny-Turner (1200L/mm Grating)
  2. Wavelength Range: 190-1100nm
  3. Wavelength Accuracy: +/-0.5nm
  4. Bandwidth: 2nm
  5. Wavelength Repeatability: <=0.2nm
  6. Wavelength Set: Automatic
  7. Work Mode: T. A. C
  8. Photometric Accuracy: +/-0.3%T
  9. Stability: +/-0.002A/H @500nm
  10. Stray Light: <=0.05%T
  11. Display Mode: LCD
  12. Detector: Silicon Photodiode
  13. Interface: USB
  14. Software: Yes

Enquiry

UV759CRT UV/Vis Spectrophotometer

Technical Parameters of UV759CRT Spectrophotometer



  1. Optical System: Czerny-Turner (1200L/mm Grating)
  2. Wavelength Range: 190-1100nm
  3. Wavelength Accuracy: +/-0.3nm
  4. Bandwidth: 1.8nm
  5. Wavelength Repeatability: <=0.1nm
  6. Wavelength Set: Automatic
  7. Work Mode: T. A. C
  8. Photometric Accuracy: +/-0.3%T
  9. Stability: +/-0.001A/H @500nm
  10. Stray Light: <=0.05%T
  11. Display Mode: LCD
  12. Detector: Silicon Photodiode
  13. Interface: USB
  14. Software: Yes

Enquiry

Color Screen Split Beam UV/Vis Spectrophotometer

Features of Touch Screen UV/Vis Spectrophotometer

Split Beam UV Visible Spectrophotometer, Split Beam UV/Vis Spectrophotometer

 7 Inch Color Screen

Users can do the measurement without connecting to PC with the large screen which can display the scanning curve and graph.

Measured values can be stored to Memory Stick

Measured result can be saved to Excel, txt or picture format (*csv, *qua, *tet, *bmp), which ensures users can edit the test report on PC.

Top-of-Line hardware

32 bits Cortex_M3 processor, clock speed can reach 120M.

Data Store Function

The RAM has the capability of saving 5000 groups of data and 200 curves which can be recalled anytime.

Excellent Auto-calibrated CT Optical System

Imported Long Service Life Lamps

Super PC Software

The software functions include (1)Kinetics (2)Quantitative (3)Wavelength Scan (4)Multi Wavelength Test (5)DNA/Protein Test.

And the software can be remotely updated.

Technical Parameters

N5000 UV Vis Spectrophotometer

  1.  Optical System: Single Beam, Czerny-Turner (1200L/mm Grating)
  2. Wavelength Range: 190-1100nm
  3. Wavelength Accuracy: +/-0.3nm
  4. Bandwidth: 2nm
  5. Wavelength Repeatability: <=0.1nm
  6. Wavelength Set: Automatic
  7. Work Mode: T. A. C
  8. Photometric Range: 0-200%T, -0.3-3.0A, 0-9999C(0-9999F)
  9. Photometric Accuracy: +/-0.3%T
  10. Stability: +/-0.001A/H @500nm
  11. Stray Light: <=0.05%T
  12. Display Mode: 7" Graphic LCD Screen (Resolution 800 x 400)
  13. Detector: Silicon Photodiode
  14. Interface: USB

Enquiry

N5000Plus UV Vis Spectrophotometer

  1.  Optical System: Single Beam, Czerny-Turner (1200L/mm Grating)
  2. Wavelength Range: 190-1100nm
  3. Wavelength Accuracy: +/-0.3nm
  4. Bandwidth: 1nm
  5. Wavelength Repeatability: <=0.1nm
  6. Wavelength Set: Automatic
  7. Work Mode: T. A. C
  8. Photometric Range: 0-200%T, -0.3-3.0A, 0-9999C(0-9999F)
  9. Photometric Accuracy: +/-0.3%T
  10. Stability: +/-0.001A/H @500nm
  11. Stray Light: <=0.05%T
  12. Display Mode: 7" Graphic LCD Screen (Resolution 800 x 400)
  13. Detector: Silicon Photodiode
  14. Interface: USB

Enquiry

N5000S UV Vis Spectrophotometer

  1.  Optical System: Single Beam, Czerny-Turner (1200L/mm Grating)
  2. Wavelength Range: 190-1100nm
  3. Wavelength Accuracy: +/-0.3nm
  4. Bandwidth: 0.5/1/2/4nm
  5. Wavelength Repeatability: <=0.1nm
  6. Wavelength Set: Automatic
  7. Work Mode: T. A. C
  8. Photometric Range: 0-200%T, -0.3-3.0A, 0-9999C(0-9999F)
  9. Photometric Accuracy: +/-0.3%T
  10. Stability: +/-0.001A/H @500nm
  11. Stray Light: <=0.05%T
  12. Display Mode: 7" Graphic LCD Screen (Resolution 800 x 400)
  13. Detector: Silicon Photodiode
  14. Interface: USB

Enquiry

Split Beam UV Visible Spectrophotometer UV1810/UV1810S

Introduction of UV Spectrophotometer UV1810/UV1810S

DNA Protein Test uv visible spectrophotometer

By simple parameter setting, this item can do the analysis of photometric, quantitative, kinetic and DNA/Protein, also can do spectral scanning and multi-wavelength test independently.
Features

  1. High performance variable spectral bandwidth 0.5/1/2/4/5/6nm (UV1810S).
  2. The data can be stored/transferred to PC via the USB interface.
  3. Sample compartment design enables use of a wide range of optional accessories.
  4. New ARM system, built-in dual languages(Chinese & English)operating system.
  5. High performance grating(1200lines/mm) and Imported Fiber Converter ensure the high performance.
  6. Suspension type optical system and long optical path design improve the resolution, stability and reliability.
  7. Socket design for Tungsten and Deuterium Lamp, so there is no need for professional adjustment while replacing a new one. Therefore users no longer need to hire professionals to change or adjust lamps which greatly improves reliability and cuts down on the maintenance expenses. The D2 Lamp and W Lamp can be controlled individually to extend the lifetime. You can switch off D2 lamp when in visible range or switch off W lamp when in ultraviolet range.
  8. Built-in and Diverse Range of Measurement Modes. Photometry, Quantitative, Wavelength Scan, Kinetics, DNA/Protein Test, Multi-wavelength measurement and printing.
  9. User Friendly Operation and Information Rich LCD Display.
  10. 320*240 dot-matrix high lighting LCD screen displays a large array of data also in graphical format. The seamless and chemical resistant keyboard is designed for easy and quick selection of navigation and function features whilst protecting against any laboratory spills.
  11. Optional carousel 8 positions cell holder.

UV1810/UV1810S/UV765 Technical parameters

UV1810 Spectrophotometer

  1.  Optical System: Ratio Double Beam, Czerny-Turner (1200L/mm Grating)
  2. Wavelength Range: 190-1100nm
  3. Wavelength Accuracy: +/-0.1nm
  4. Bandwidth: 1nm
  5. Wavelength Repeatability: <=0.1nm
  6. Wavelength Set: Automatic
  7. Work Mode: T. A. C
  8. Photometric Range: 0-200%T, -0.3-3.0A, 0-9999C(0-9999F)
  9. Photometric Accuracy: +/-0.3%T
  10. Stability: +/-0.0005A/H @500nm
  11. Stray Light: <=0.05%T
  12. Display Mode: LCD
  13. Detector: Silicon Photodiode
  14. Interface: USB

Enquiry

UV1810S Spectrophotometer

  1.  Optical System: Ratio Double Beam, Czerny-Turner (1200L/mm Grating)
  2. Wavelength Range: 190-1100nm
  3. Wavelength Accuracy: +/-0.1nm
  4. Bandwidth: 0.5/1/2/4/5/nm
  5. Wavelength Repeatability: <=0.1nm
  6. Wavelength Set: Automatic
  7. Work Mode: T. A. C
  8. Photometric Range: 0-200%T, -0.3-3.0A, 0-9999C(0-9999F)
  9. Photometric Accuracy: +/-0.3%T
  10. Stability: +/-0.0005A/H @500nm
  11. Stray Light: <=0.05%T
  12. Display Mode: LCD
  13. Detector: Silicon Photodiode
  14. Interface: USB

Enquiry

UV765 Spectrophotometer

  1.  Optical System: Ratio Double Beam, Czerny-Turner (1200L/mm Grating)
  2. Wavelength Range: 190-1100nm
  3. Wavelength Accuracy: +/-0.1nm
  4. Bandwidth: 1.8nm
  5. Wavelength Repeatability: <=0.1nm
  6. Wavelength Set: Automatic
  7. Work Mode: T. A. C
  8. Photometric Range: 0-200%T, -0.3-3.0A, 0-9999C(0-9999F)
  9. Photometric Accuracy: +/-0.3%T
  10. Stability: +/-0.0005A/H @500nm
  11. Stray Light: <=0.05%T
  12. Display Mode: LCD
  13. Detector: Silicon Photodiode
  14. Interface: USB

Enquiry

New Design Split Beam UV Spectrophotometer

Features of the New Design Split Beam UV Spectrophotometers

Split Beam UV Spectrophotometer

  1.  7” TFT screen, which can display the spectrums and curves without connecting to the PC.
  2. Support U-Disk storage. Test result can be transfered to U-Disk (excel, txt, *.csv、*.qua.*.tet,*.bmp), User can edit the test report on PC directly.
  3. Interface: RS232, USB drive, USB Host.
  4. Standard 16 GB Storage, can store 5000 groups test results and 500 curves.
  5. ARM11 processor ensures the stability of the spectrophotometers,
  6. Optional automatic injection system, which can improve work efficiency.
  7. Optional carousel 8 positions cell holder.

Technical Parameters

T2600 UV Spectrophotometer

  1. Optical System: Split Beam, Czerny-Turner (1200L/mm Grating)
  2. Wavelength Range: 190-1100nm
  3. Wavelength Accuracy: +/-0.3nm
  4. Bandwidth: 2nm
  5. Wavelength Repeatability: <=0.1nm
  6. Wavelength Set: Automatic
  7. Work Mode: T. A. C
  8. Photometric Range: 0-200%T, -0.3-3.0A, 0-9999C(0-9999F)
  9. Photometric Accuracy: +/-0.3%T
  10. Stability: +/-0.001A/H @500nm
  11. Stray Light: <=0.05%T
  12. Display Mode: 7" Graphic LCD Screen (Resolution 1024X600)
  13. Detector: Silicon Photodiode
  14. Lamp: Tungsten Lamp & Deuterium Lamp
  15. Interface: USB drive, USB host, RS232.
  16. Durable OMRON Keys

Enquiry

T2601 UV Spectrophotometer

  1. Optical System: Split Beam, Czerny-Turner (1200L/mm Grating)
  2. Wavelength Range: 190-1100nm
  3. Wavelength Accuracy: +/-0.3nm
  4. Bandwidth: 1nm
  5. Wavelength Repeatability: <=0.1nm
  6. Wavelength Set: Automatic
  7. Work Mode: T. A. C
  8. Photometric Range: 0-200%T, -0.3-3.0A, 0-9999C(0-9999F)
  9. Photometric Accuracy: +/-0.3%T
  10. Stability: +/-0.001A/H @500nm
  11. Stray Light: <=0.05%T
  12. Display Mode: 7" Graphic LCD Screen (Resolution 1024X600)
  13. Detector: Silicon Photodiode
  14. Lamp: Tungsten Lamp & Deuterium Lamp
  15. Interface: USB drive, USB host, RS232.
  16. Durable OMRON Keys

Enquiry

T2600S UV Spectrophotometer

  1. Optical System: Split Beam, Czerny-Turner (1200L/mm Grating)
  2. Wavelength Range: 190-1100nm
  3. Wavelength Accuracy: +/-0.3nm
  4. Bandwidth: 0.5/1/2/4/5nm
  5. Wavelength Repeatability: <=0.1nm
  6. Wavelength Set: Automatic
  7. Work Mode: T. A. C
  8. Photometric Range: 0-200%T, -0.3-3.0A, 0-9999C(0-9999F)
  9. Photometric Accuracy: +/-0.3%T
  10. Stability: +/-0.001A/H @500nm
  11. Stray Light: <=0.05%T
  12. Display Mode: 7" Graphic LCD Screen (Resolution 1024X600)
  13. Detector: Silicon Photodiode
  14. Lamp: Tungsten Lamp & Deuterium Lamp
  15. Interface: USB drive, USB host, RS232.
  16. Durable OMRON Keys

Enquiry

Touch Screen Split Beam UV Spectrophotometer

Feaures

Touch Screen Split Beam UV Spectrophotometer

  1.  10.1” touch screen, which can display the spectrums and curves without connecting to the PC.
  2. Support U-Disk storage. Test result can be transfered to U-Disk (excel, txt, *.csv、*.qua.*.tet,*.bmp), User can edit the test report on PC directly.
  3. Interface: RS232, USB drive, USB Host.
  4. Standard 16 GB Storage, can store 5000 groups test results and 500 curves.
  5. ARM12 processor for high performance.
  6. Optional automatic injection system, which can improve work efficiency.

T3200 UV Spectrophotometer Technical Parameters

  1. Optical System: Split Beam, Czerny-Turner (1200L/mm Grating)
  2. Wavelength Range: 190-1100nm
  3. Wavelength Accuracy: +/-0.3nm
  4. Bandwidth: 2nm
  5. Wavelength Repeatability: <=0.1nm
  6. Wavelength Set: Automatic
  7. Work Mode: T. A. C
  8. Photometric Range: 0-200%T, -0.3-3.0A, 0-9999C(0-9999F)
  9. Photometric Accuracy: +/-0.3%T
  10. Stability: +/-0.001A/H @500nm
  11. Stray Light: <=0.05%T
  12. Display Mode: 10.1" touch Screen (Resolution 1024 x 800)
  13. Detector: Silicon Photodiode
  14. Lamp: Tungsten Lamp & Deuterium Lamp
  15. Interface: USB

Enquiry

T3200S UV Spectrophotometer Technical Parameters

  1. Optical System: Split Beam, Czerny-Turner (1200L/mm Grating)
  2. Wavelength Range: 190-1100nm
  3. Wavelength Accuracy: +/-0.3nm
  4. Bandwidth: 0.5/1/2/4/5nm
  5. Wavelength Repeatability: <=0.1nm
  6. Wavelength Set: Automatic
  7. Work Mode: T. A. C
  8. Photometric Range: 0-200%T, -0.3-3.0A, 0-9999C(0-9999F)
  9. Photometric Accuracy: +/-0.3%T
  10. Stability: +/-0.001A/H @500nm
  11. Stray Light: <=0.05%T
  12. Display Mode: 10.1" touch Screen (Resolution 1024 x 800)
  13. Detector: Silicon Photodiode
  14. Lamp: Tungsten Lamp & Deuterium Lamp
  15. Interface: USB

Enquiry
