Disintegration Tester

Disintegration Tester BJ-1

Disintegration Tester BJ-1

Disintegration Tester BJ-1

Temperature range: room temperature - 50℃, display resolution is 0.1℃.

Temperature control accuracy: ±0.3℃

Timer: 1min~900min

Timer accuracy: ±0.5min

Working noise: <60db

Number of lifting baskets: 1 set

Range of lifting baskets: (30~31) times/min

Lifting distance of hanging baskets: (55±1) mm

Minimum spacing from screen to beaker bottom: 25mm±2mm

Mesh Size: standard 2mm, (0.425mm, 0.71mm, 1mm are optional)

Block density: 1.18-1.20g/cm

Power supply: 220V50Hz

Machine power: 600W

Dimensions: length*width*height  260mm*300mm*440mm

Disintegration Tester BJ-2

Disintegration Tester BJ-1

Disintegration Tester BJ-1

Temperature range: room temperature - 50℃, display resolution is 0.1℃.

Temperature control accuracy: ±0.3℃

Timer: 1min~900min

Timer accuracy: ±0.5min

Working noise: <60db

Number of lifting baskets: 2 sets

Range of lifting baskets: (30~31) times/min

Lifting distance of hanging baskets: (55±1) mm

Minimum spacing from screen to beaker bottom: 25mm±2mm

Mesh Size: standard 2mm, (0.425mm, 0.71mm, 1mm are optional)

Block density: 1.18-1.20g/cm

Power supply: 220V50Hz

Machine power: 600W

Dimensions: length*width*height  400mm*320mm*440mm

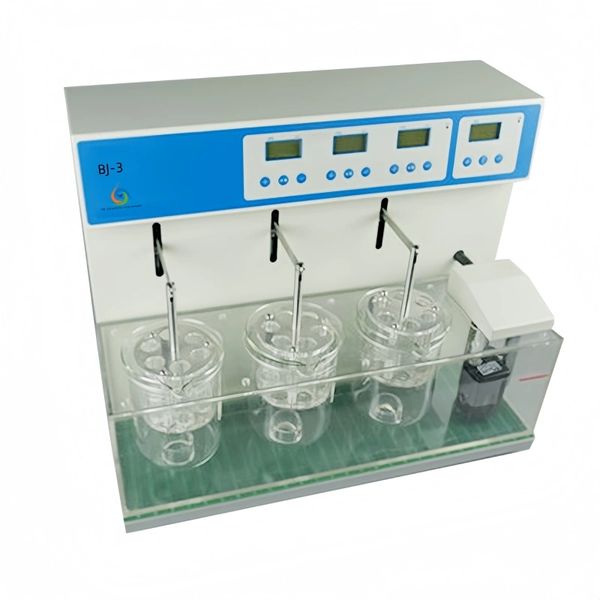

Disintegration Tester BJ-3

Disintegration Tester BJ-3

Disintegration Tester BJ-3

Temperature range: room temperature - 50℃, display resolution is 0.1℃.

Temperature control accuracy: ±0.3℃

Timer: 1min~900min

Timer accuracy: ±0.5min

Working noise: <60db

Number of lifting baskets: 3 sets

Range of lifting baskets: (30~31) times/min

Lifting distance of hanging baskets: (55±1) mm

Minimum spacing from screen to beaker bottom: 25mm±2mm

Mesh Size: standard 2mm, (0.425mm, 0.71mm, 1mm are optional)

Block density: 1.18-1.20g/cm

Power supply: 220V50Hz

Machine power: 600W

Dimensions: length*width*height  540mm*320mm*440mm

Disintegration Tester BJ-4

Disintegration Tester BJ-3

Disintegration Tester BJ-3

Temperature range: room temperature - 50℃, display resolution is 0.1℃.

Temperature control accuracy: ±0.3℃

Timer: 1min~900min

Timer accuracy: ±0.5min

Working noise: <60db

Number of lifting baskets: 4 sets

Range of lifting baskets: (30~31) times/min

Lifting distance of hanging baskets: (55±1) mm

Minimum spacing from screen to beaker bottom: 25mm±2mm

Mesh Size: standard 2mm, (0.425mm, 1mm are optional)

Block density: 1.18-1.20g/cm

Power supply: 220V50Hz

Machine power: 600W

Dimensions: length*width*height  700mm*400mm*530mm

FAQ

A disintegration tester is an essential tool used in the pharmaceutical industry to ensure the proper performance of tablets and capsules. The disintegration tester works by simulating the conditions the tablets or capsules will face once they are ingested. It measures how long it takes for the tablets or capsules to break down into smaller particles and disperse in the stomach. This process is important because if a tablet or capsule does not disintegrate properly, it may not release the active ingredients as intended, leading to ineffective treatment.

The disintegration tester consists of several components, including a water bath, a basket rack assembly, and a temperature control system. The tablets or capsules are placed in the basket rack, which is then submerged in the water bath. The temperature control system ensures that the test is conducted at the appropriate temperature, typically 37°C to mimic the conditions in the human body. As the tablets or capsules disintegrate, the small particles are collected in a mesh at the bottom of the basket rack. The disintegration time is recorded, and if the tablets or capsules do not disintegrate within the specified time frame, they are considered to have failed the test.

Overall, the disintegration tester plays a crucial role in ensuring the quality and efficacy of pharmaceutical products. By accurately determining the disintegration time of tablets and capsules, manufacturers can make necessary adjustments to their formulations to improve product performance. This tool is also used by regulatory agencies to assess the quality and consistency of pharmaceutical products on the market, ultimately ensuring the safety and efficacy of medications for consumers.
