Single Beam UV Visible Spectrophotometer UV752/UV754

Introduction of UV752/UV754 Spectrophotometer

Models in this series are simple single beam spectrophotometers. The wavelength is set manually from the dial on the front panel. Direct readout of transmission or absorption on the LED display. Measured values can be transferred to PC via the RS232 for further analysis. Low price and simple design make this model make this ideal tool for education or routine analysis.


Features

  1. Simple & clear keyboard operation provides auto 0% & 100% adjustment, Error free T-A transformation, faster setting and direct concentration readout functions.
  2. Imported Tungsten (W) Lamp, long service life.
  3. Spacious sample compartment, suitable for various dimensions optical path rectangular cells(100mm max).

Included Accessories

  • 1 Main Instrument
  • 1 Power Cable
  • 4 x 10mm Glass Cuvettes
  • 1 Cell Holder
  • 1 Tungsten Lamp
  • 1 Deuterium Lamp
  • 1 Singal Cable

UV752/UV754 Technical Parameters

UV752 Spectrophotometer

  1. Optical System: Czerny-Turner (1200L/mm Grating)
  2. Wavelength Range: 195-1020nm
  3. Wavelength Accuracy: +/-2nm
  4. Bandwidth: 5nm
  5. Wavelength Repeatability: <=1nm
  6. Wavelength Set: Manually
  7. Work Mode: T. A. C
  8. Photometric Accuracy: +/-0.5%T
  9. Stability: +/-0.004A/H @500nm
  10. Stray Light: <=0.3%T
  11. Display Mode: LED
  12. Detector: Silicon Photodiode
  13. Interface: RS232C

Enquiry

UV752N Spectrophotometer

  1. Optical System: Czerny-Turner (1200L/mm Grating)
  2. Wavelength Range: 195-1020nm
  3. Wavelength Accuracy: +/-2nm
  4. Bandwidth: 4nm
  5. Wavelength Repeatability: <=1nm
  6. Wavelength Set: Manually
  7. Work Mode: T. A. C
  8. Photometric Accuracy: +/-0.5%T
  9. Stability: +/-0.004A/H @500nm
  10. Stray Light: <=0.3%T
  11. Display Mode: LED
  12. Detector: Silicon Photodiode
  13. Interface: RS232C
  14. Software: Yes

Enquiry

UV754PC Spectrophotometer

  1. Optical System: Czerny-Turner (1200L/mm Grating)
  2. Wavelength Range: 195-1020nm
  3. Wavelength Accuracy: +/-2nm
  4. Bandwidth: 2nm
  5. Wavelength Repeatability: <=1nm
  6. Wavelength Set: Manually
  7. Work Mode: T. A. C
  8. Photometric Accuracy: +/-0.5%T
  9. Stability: +/-0.004A/H @500nm
  10. Stray Light: <=0.3%T
  11. Display Mode: LED
  12. Detector: Silicon Photodiode
  13. Interface: RS232C
  14. Software: Yes

Enquiry

Single Beam UV/Visible Spectrophotometer UV755B

Features of UV755B Spectrophotometer

Single Beam UV Visible Spectrophotometer

  1.  Automatically set and calibrate the wavelength.
  2. USB ports for programming updates and other accessory connection.
  3. Absorbance, %T and concentration modes.
  4. The RAM has the capability of saving 200 groups of measured data which can be recalled any time.
  5. Users can build their own standard curve and save it within the RAM. The curves can be reloaded at any time. Up to 100 curves can be stored.
  6. Software based on windows can expand the applications to Standard Curve and Kinetics through the USB port.
  7. Imported Fiber Converter, which guarantees the high sensibility.
  8. Advanced Microcontroller. 32 bits ARM 11, the frequency can reach 533MHZ, which ensures the instrument’s stability.
  9. Sealed monochromator and all the optical mirror surface is coated with Silicon Dioxide, which protect the optical components from the environment.
  10. The instrument has the ability to test Absorbance, Transmittance and concentration at selected wavelength.
  11. Optional 8 positions cell holder.

Included Accessories

  • 1 Main Instrument
  • 1 Power Cable
  • 4 x 10mm Glass Cuvettes
  • 1 Cell Rack
  • 1 Tungsten Lamp
  • 1 Deuterium Lamp
  • 1 Singal Cable
  • Software CD

Technical Parameters

  1. Optical System: Czerny-Turner (1200L/mm Grating)
  2. Wavelength Range: 190-1100nm
  3. Wavelength Accuracy: +/-1nm
  4. Bandwidth: 2nm
  5. Wavelength Repeatability: <=0.5nm
  6. Wavelength Set: Automatic
  7. Work Mode: T. A. C
  8. Photometric Accuracy: +/-0.5%T
  9. Stability: +/-0.002A/H @500nm
  10. Stray Light: <=0.2%T
  11. Display Mode: LCD
  12. Detector: Silicon Photodiode
  13. Interface: USB

Enquiry

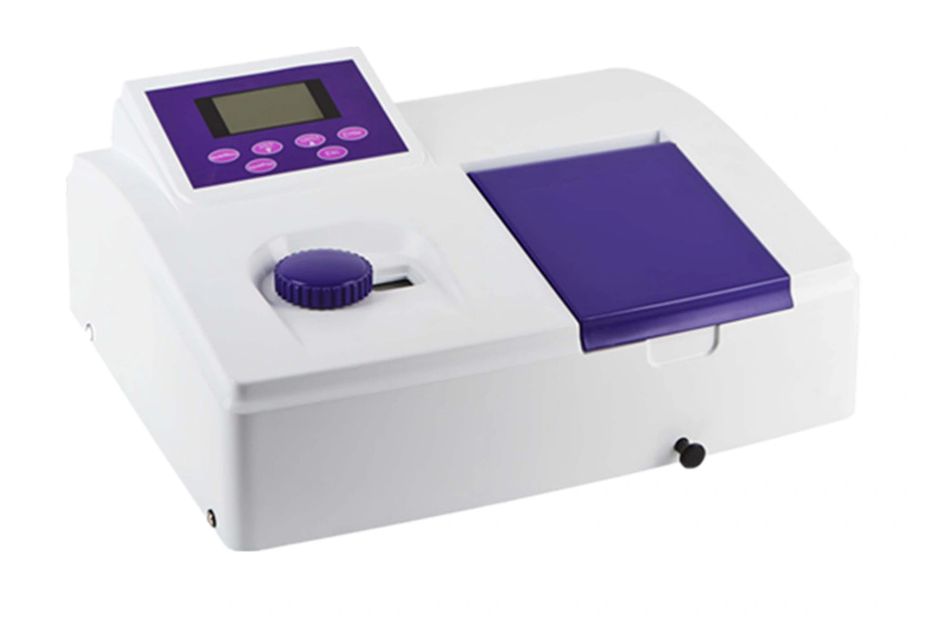

simple UV Visible spectrophotometer U1000/U1000PRO

Introduction of U1000/U1000PRO Spectrophotometer

simple uv visible spectrophotometer, educational spectrophotometer

 Versatile, Rugged, Accurate & Easy to Operate Instrument to determine Absorbance, Transmission, Concentration and K Factor.
Features

  1. Blue backlit LCD Screen, can display T, A, C, K, B.
  2. Automatically adjust 0%A and 100%T.
  3. With the professional software, it can do the quantitative and kinetics analysis.
  4. Automatically change between Tungsten lamp and Deuterium lamp.
  5. Can store 50 sets of test data and 10 sets of K and B data.

Technical Parameters of U1000/U1000PRO

U1000 Spectrophotometer

  1. Optical System: Czerny-Turner (1200L/mm Grating)
  2. Wavelength Range: 190-1100nm
  3. Wavelength Accuracy: +/-2nm
  4. Bandwidth: 4nm
  5. Wavelength Repeatability: <=1nm
  6. Wavelength Set: Manually
  7. Work Mode: T. A. C
  8. Photometric Accuracy: +/-0.5%T
  9. Stability: +/-0.002A/H @500nm
  10. Stray Light: <=0.15%T
  11. Display Mode: LED
  12. Detector: Silicon Photodiode
  13. Interface: USB

Enquiry

U1000PRO Spectrophotometer

  1. Optical System: Czerny-Turner (1200L/mm Grating)
  2. Wavelength Range: 190-1100nm
  3. Wavelength Accuracy: +/-2nm
  4. Bandwidth: 2nm
  5. Wavelength Repeatability: <=1nm
  6. Wavelength Set: Manually
  7. Work Mode: T. A. C
  8. Photometric Accuracy: +/-0.5%T
  9. Stability: +/-0.002A/H @500nm
  10. Stray Light: <=0.15%T
  11. Display Mode: LED
  12. Detector: Silicon Photodiode
  13. Interface: USB

Enquiry
