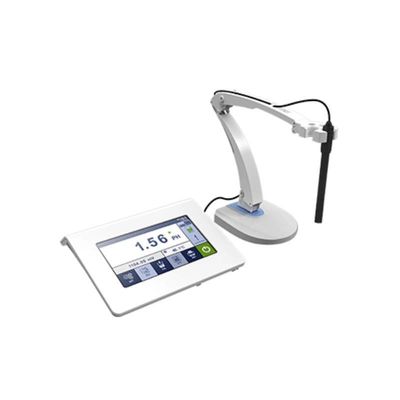

Touch Screen PH/EC/ION meters

Features

1.7-inch color high-resolution (1024*600) capacitive touch screen, UI design, navigation-style operation experience, high sensitivity, complete parameter display, intuitive, easy to use and simple. The main body shell is made of PEEK material, which is resistant to high temperature, corrosion and aging.

2. Built-in ARM32-bit microprocessor chip, using digital filtering and slip technology, intelligently improves the response speed of the instrument(Measurement time not more than 10 seconds) and the accuracy of the measurement data. The circuit board adopts SMT patch technology to improve the reliability of product processing.

3. Complying with the GLP requirements, it has intelligent functions such as: Automatic self-test, automatic calibration, automatic temperature compensation, data storage, USB output, time display and wireless printing.

4. The instrument has a built-in Chinese and English bilingual operating system, humanized operation design, adjustable brightness, and temperature units can be switched between ℃ and ℉. The instrument is equipped with a temperature electrode for automatic temperature compensation.

5. Built-in large-capacity storage can store 500 sets of measurement data, and the data can be transferred through a USB flash drive. The stored data can be opened with general office software EXELL for customer editing.

6. The instrument is equipped with a Bluetooth module, which supports wireless Bluetooth printing and is convenient for user operation.

7. Scalability: Different pH electrodes can be easily and quickly replaced (matching electrodes can be selected for measuring different samples) to measure pH.

8. Automatically identify 15 pH standard buffer solutions, and there are three series of standard buffer solutions to choose from: European and American series, NIST series and Chinese series.

9. Intelligently judge the electrode status to ensure accurate use by customers.

10. It is equipped with rechargeable lithium battery, battery status is visible from the screen and there will be audible alert for low battery indicator. It supports power supply and better power supply.

11. Meets IP54 dust and splash proof.

PH Meters Technical parameters

P10

P916

P10

1. pH Measuring Range: -2.00-19.99PH;

2. Temp Compensation Range: 0-100 Celsius Degree

3. MV Measuring Range: -1999.9 to 1999.9 mV

4. Temp Measuring Range: 0-100Celsius Degree

5. Resolution: 0.01 pH, 1 mV, 0.1℃

6. Accuracy: ±0.01 pH, ±1 mV, ±0.5℃

7. Calibration: 3 points

8. Power Supply: 220 V ± 10 %, 50/60 Hz

9. Accessory: one (1) E-201-9 combined electrode; one (1)T-10-Q temperature sensor; base and arm; buffer kit for pH calibration kit; Power adapter, Operation Manual

P11

P916

P10

1. Measurement Range: Conductance: (0.00-20.00)μS/cm , (20.0-200.0)μS/cm, (200-2000)μS/cm, (2.00-20.00)mS/cm, （20.0~200.0）mS/cm; Temperature : 0-100 Celsius Degree; TDS: (0.001-199.9)g/L; Salinity: (0-100)ppt; Resistivity: (0-100)MΩ•cm;

2. Resolution: Conductance: 0.01/0.1/1μS/cm, 0.01/0.1 mS/cm; Temp: 0.1℃

3. Accuracy: Meter:±1.0% FS, Temp: ±0.5℃

4. Standard Accessories: DJS-1 EC Electrode *1, T-10-Q Temperature Sensor *1, 1408μS/cm buffer 50ml* 2, Flexible Electrode Holder*1, Adapter*1, Operation Manual*1

P916

1. Ph: Measurement range: 0.00 to 14.00, Resolution: 0.01 pH, Accuracy: ±0.01 pH, Calibration points: 3

2. mV: Measurement range: -1999.9 to 1999.9, Resolution: 1 mV, Accuracy: ±1 mV

3. ION: Measurement range: 0.001 to 14000 for NO3, Resolution: 0.001, 0.01, 0.1, 1 ,

Accuracy: ±0.5 % , Calibration points: 5

4. Measurement Units: ppm, mg/L, mol/L, mmol/L

5. Temperature: Measurement range: 0 to 100 ℃,

Resolution: 0.1 ℃, Accuracy: ±0.5 ℃

6. Accessories: Ion electrode

Reference electrode

Temperature electrode

Standard solution (2 bottles)

Power Adapter, Operation Manual
